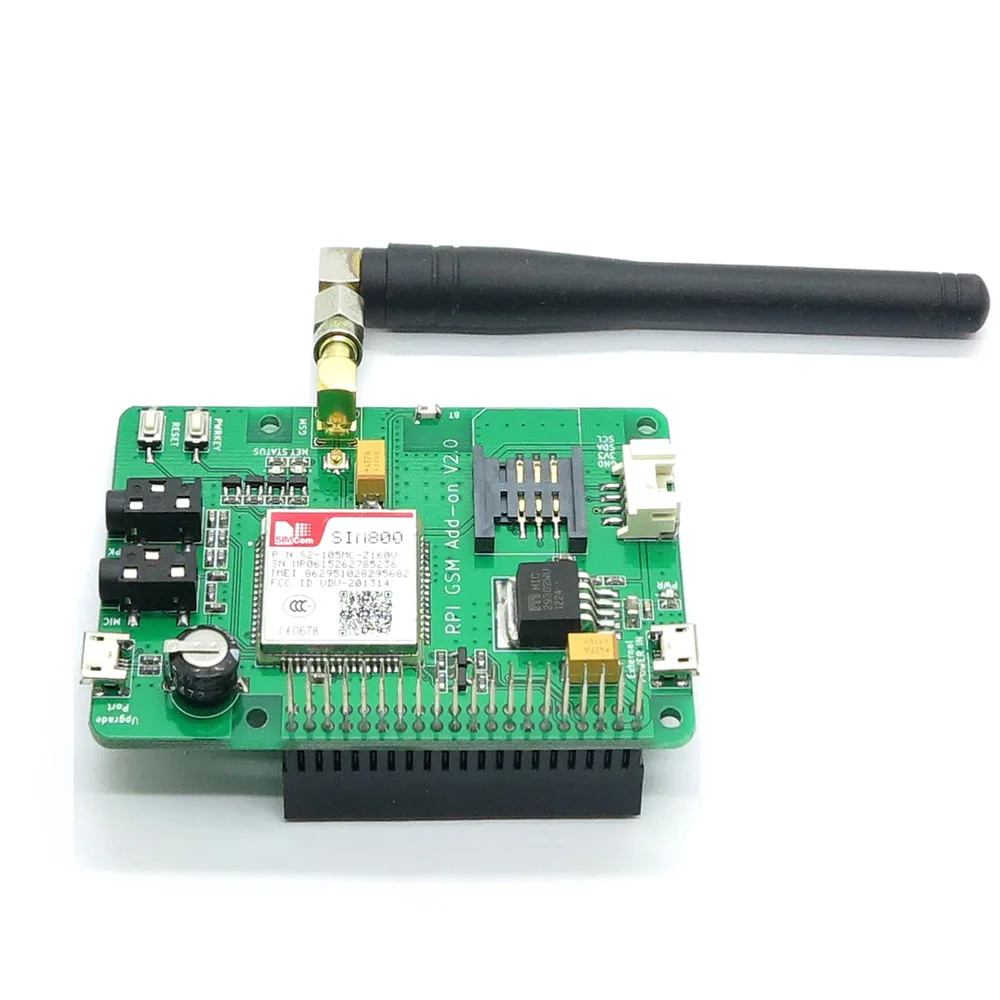

Itead Raspberry Pi 3 Model B+ plus SIM800 GSM/GPRS Module Add-on V2.0 also for Raspberry pi 3 also
- Compatible With: Raspberry Pi 3 Model B/B+
- Accessory Type: Extension Board
- Brand Name: UNISTORM
- Origin: Mainland China
- Power: Low Power
- Frequency: Low Frequency
- Type: Other
- Material: Silicon
- Install Style: Plug-in
- Item Description: Itead Raspberry Pi 2 SIM800 GSM/GPRS Module Add-on V2.0
Free Shipping Itead Raspberry Pi 3 and raspberry pi 2 SIM800 GSM/GPRS Module Add-on V2.0
Item Description:
Raspberry PI GSM Add-on V2.0 is customized for Raspberry Pi interface based on SIM800 quad-band GSM/GPRS/BT module. AT commands can be sent via the serial port on Raspberry Pi, thus functions such as dialing and answering calls, sending and receiving messages and surfing on line can be realized. Moreover, the module supports powering-on and resetting via software.
Feature:
Quad-Band 850/ 900/ 1800/ 1900 MHz
GPRS multislot class 12
Operation temperature: -40°C to +85 °C
Operation Level: Digital 3.3V DC
Interface: UART
Baud rate: 9600(default)
Indicators:
PWR (Power): When there is normal supply to the board, the indicator keeps on.
8STATUS (SIM800 status): When SIM800 works normally, the indicator keeps on.
NET (SIM800 network status): used to indicate network status, the working status of the indicator is as below:
|
Status |
SIM800 behavior |
|
OFF |
SIM800 does not work |
|
64ms on/800ms off |
SIM800 does not find network |
|
64ms on/3000ms off |
SIM800 registers the network |
|
64ms on/300ms off |
GPRS communicates |
Packing List:
1 X SIM800 Module
1 X Antenna
